HISTORY OF COMPANY
Incorporated in 1994, Indo Farm Equipment Limited is an ISO Certified Company located in the foothills of the beautiful State of Himachal Pradesh in India. We proudly manufacture world-class tractors, cranes, engines, diesel gensets and Harvester Combines. Indo Farm commenced commercial production of tractors in October 2000 and in 2008, the company diversified into manufacturing and marketing of Pick-N-Carry cranes of 9 tonnes – 30 tonnes capacity and commenced production of mobile tower cranes.
INDO FARM TRACTOR
INDO FARM 2030DI HS
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-34HP
- CC:- N/A
- Engine Rated RPM:- 2000
- Cooling:- Water cooled
- Air Filter:- Oil bath type
TRANSMISSION
- Type:- N/A
- Clutch:- Single
- Gear Box:- 8F+2R
- Forward Speed:-28.05kmph
BRAKES
- Mechanical,Dry,Multiple Disc Type/ Oil Immeresed Brakes (Opt)
STEERING
- Mechanical -Recirculating ball type
POWER TAKE OFF
- Type:- 6 spline
- RPM:-1000rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1400kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 12.4×28
DIMENSIONS
- Total Weight:- 1855 KG
- Wheel Base:- N/A
- Overall Length:- 3465MM
- Ground Clearance:- 400MM
- Turning Radius With Brakes:- N/A
WARRANTY

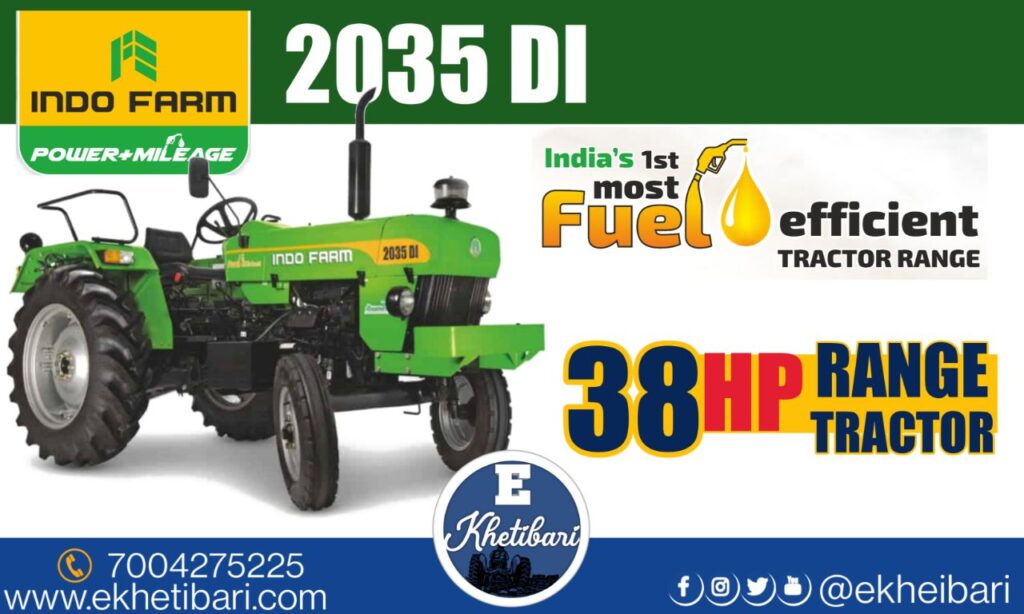

INDO FARM 2035 DI
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-38HP
- CC:- N/A
- Engine Rated RPM:- 2000
- Cooling:- Water cooled
- Air Filter:- Oil Bath Type
TRANSMISSION
- Type:- N/A
- Clutch:- Single/Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-28.05kmph
BRAKES
- Mechanical,Dry,Multiple Disc Type/ Oil Immeresed Brakes (Opt)
STEERING
- Mechanical -Recirculating ball type
POWER TAKE OFF
- Type:- 6 spline
- RPM:-1000rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1400kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 12.4×28
DIMENSIONS
- Total Weight:- 1855 KG
- Wheel Base:- N/A
- Overall Length:- 3465MM
- Ground Clearance:- 400MM
- Turning Radius With Brakes:- N/A
WARRANTY
INDO FARM 3040 DI
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-45HP
- CC:- N/A
- Engine Rated RPM:- 2000
- Cooling:- Water cooled
- Air Filter:- Oil Bath Type
TRANSMISSION
- Type:- N/A
- Clutch:- Single/Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-29kmph
BRAKES
- Mechanical,Dry,Multiple Disc Type/ Oil immeresed brakes (Optr)
STEERING
- Mechanical -Recirculating ball type
POWER TAKE OFF
- Type:- 6 spline
- RPM:-1000rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1400kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 13.6×28
DIMENSIONS
- Total Weight:- 1930KG
- Wheel Base:- N/A
- Overall Length:- 3520MM
- Ground Clearance:- 390MM
- Turning Radius With Brakes:- N/A
WARRANTY
INDO FARM 3035DI
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-38HP
- CC:- N/A
- Engine Rated RPM:- 2100
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Single Clutch
- Gear Box:- 8F+2R
- Forward Speed:-29.5kmph
BRAKES
- Double disc /Oil Immeresed Multiple Disc Brakes (Opt)
STEERING
- Mechanical/Power Steering (Opt)
POWER TAKE OFF
- Type:- 6 spline
- RPM:-1000rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1400kg/1500kg (Opt)
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 12.4×28
DIMENSIONS
- Total Weight:- 1980 KG
- Wheel Base:- N/A
- Overall Length:- 3600MM
- Ground Clearance:- 385MM
- Turning Radius With Brakes:- N/A
WARRANTY
INDO FARM 3040 DI
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-45HP
- CC:- N/A
- Engine Rated RPM:- 2100
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Single/Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-30.45kmph
BRAKES
- OIB /Mechanical, Dry, Multi disc type (Opt)
STEERING
- Mechanical/Power Steering (Opt)
POWER TAKE OFF
- Type:- 6 spline
- RPM:-1000rpm/540rpm-Dual clutch
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1400kg/1500kg (Opt)
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 13.6×28
DIMENSIONS
- Total Weight:- 1990 KG
- Wheel Base:- N/A
- Overall Length:- 3660MM
- Ground Clearance:- 390MM
- Turning Radius With Brakes:- N/A
WARRANTY
INDO FARM 3040 DI
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-50HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Single/Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-30.93kmph
BRAKES
- Oil immeresed brakes
STEERING
- Power Steering (Opt)
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1800kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD/4WD
- Rear Tyres:- 13.6×28/14.9×28
DIMENSIONS
- Total Weight:- 2160/2370KG
- Wheel Base:- N/A
- Overall Length:- 3750/3760MM
- Ground Clearance:- 350/400MM
- Turning Radius With Brakes:- N/A
WARRANTY

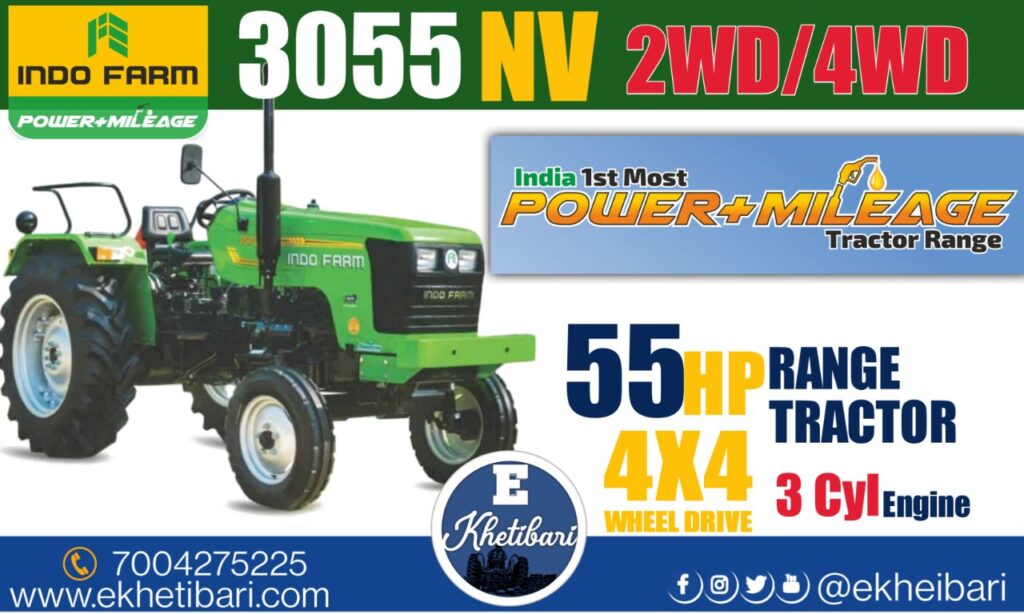

INDO FARM 3055NV
ENGINE
- NO OF CYLINDER:- 03
- ENGINE HP:-55HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-32.93kmph
BRAKES
- Oil Immeresed Brakes
STEERING
- Power Steering
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1800kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD/4WD
- Rear Tyres:- 14.9×28
DIMENSIONS
- Total Weight:- 2260/2370 KG
- Wheel Base:- N/A
- Overall Length:- 3700/3760MM
- Ground Clearance:- 420/370MM
- Turning Radius With Brakes:- 3500/4000MM
WARRANTY

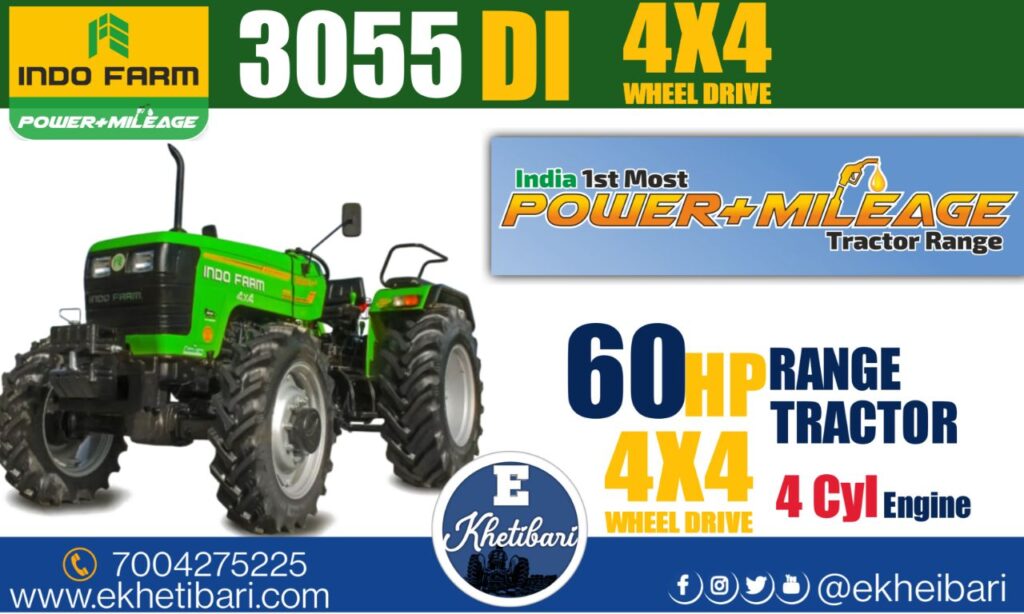

INDO FARM 3055 DI
ENGINE
- NO OF CYLINDER:- 04
- ENGINE HP:-60HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-34.48kmph
BRAKES
- Oil Immeresed Brakes
STEERING
- Hydrostatic Power Steering
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1800KG
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD
- Rear Tyres:- 16.9x28
DIMENSIONS
- Total Weight:- 2350/2750KG
- Wheel Base:- N/A
- Overall Length:- 3810/3990MM
- Ground Clearance:- 420/380MM
- Turning Radius With Brakes:- 4000/5000MM
WARRANTY

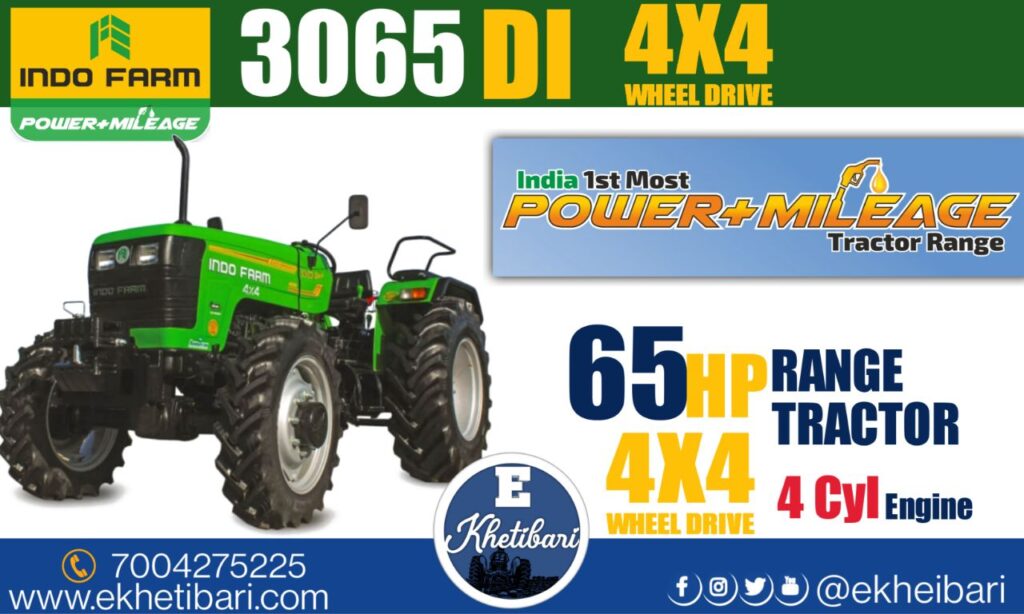

INDO FARM 3065 DI
ENGINE
- NO OF CYLINDER:- 04
- ENGINE HP:-65HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-34.48kmph3
BRAKES
- Oil immeresed brakes
STEERING
- Power Steering (Opt)
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 1800kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD/4WD
- Rear Tyres:- 16.9×28
DIMENSIONS
- Total Weight:- 2400/2750KG
- Wheel Base:- N/A
- Overall Length:- 3830/3990MM
- Ground Clearance:- 420/380MM
- Turning Radius With Brakes:- 4000/5000MM
WARRANTY
INDO FARM 3055NV
ENGINE
- NO OF CYLINDER:- 04
- ENGINE HP:-75HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-35.75kmph
BRAKES
- Oil Immeresed Brakes
STEERING
- Hydrostatic Power Steering
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 2400kg
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD/4WD
- Rear Tyres:- 16.9×30
DIMENSIONS
- Total Weight:- 24900/2750 KG
- Wheel Base:- N/A
- Overall Length:- 3830/3970MM
- Ground Clearance:- 410/390MM
- Turning Radius With Brakes:- 4500/5500MM
WARRANTY
INDO FARM 3055 DI
ENGINE
- NO OF CYLINDER:- 04
- ENGINE HP:-90HP
- CC:- N/A
- Engine Rated RPM:- 2200
- Cooling:- Water cooled
- Air Filter:- Dry Type
TRANSMISSION
- Type:- N/A
- Clutch:- Dual Clutch
- Gear Box:- 8F+2R
- Forward Speed:-35.76kmph
BRAKES
- Oil Immeresed Brakes
STEERING
- Hydrostatic Power Steering
POWER TAKE OFF
- Type:- 6 spline
- RPM:-540rpm
- HP:- N/A
FUEL TANK
- Capacity:- N/A
HYADRAULICS
- Lifting Capacity:- 2400KG
- 3 Point Linkage:- N/A
WHEEL & TYRES
- Wheel Drive:- 2 WD/4WD
- Rear Tyres:- 16.9x30
DIMENSIONS
- Total Weight:- 2530/2770KG
- Wheel Base:- N/A
- Overall Length:- 3840/3970MM
- Ground Clearance:- 410/390MM
- Turning Radius With Brakes:- 4500/5000MM
WARRANTY
